SEPTIC TANKS & ACCESSORIES

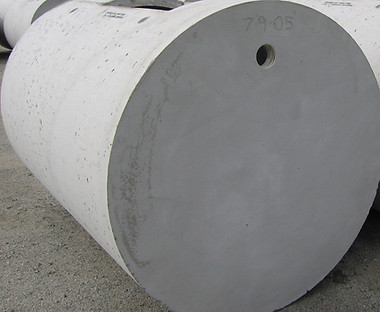

SEPTIC TANK ~ 3250 L
Manufactured to Australian Standards by RI Industries to conform with: AS/NZS 1546.1:2008
SA Health Approved Product: South Australian Public Health (Wastewater) Regulations 2013
Diameter: 1660mm L: 2300mm H: 1700mm
Weight: 2500kg
Hole Size: L 2500mm x W 1900mm Depth: 1700mm
Bottom of hole to inlet: 1400mm
SADDLE RISER
Saddle Riser to fit over 3250L Septic Tank
Requires 2 Riser Lids - sold separately
Dimensions: H 200mm x L 1200mm x W 750mm
RISER EXTENTION ~ 300mm
Riser Extention fits over Saddle Riser (as shown)
Requires 2 Riser Lids ~ sold seperately
Dimensions: H 300mm x L 1200mm x W 750mm
RISER EXTENSION ~ 200mm
Riser Extension fits over Saddle Riser (as shown)
Requires 2 Riser Lids ~ sold seperately
Dimensions: H 200mm x L 1200mm x W 750mm
RISER EXTENSION ~ 130mm
Riser Extension fits over Saddle Riser (as shown)
Requires 2 Riser Lids ~ Sold seperately
Dimensions: H 200mm x L 1200mm x W 750mm
RISER LID
2 Lids required for Saddles & Riser Extensions
Dimensions: 700mm x 600mm x 50mm
Max Top Load: 510kg
HEAVY DUTY RISER LIDS
Dimensions: 700mm x 600mm x 80mm

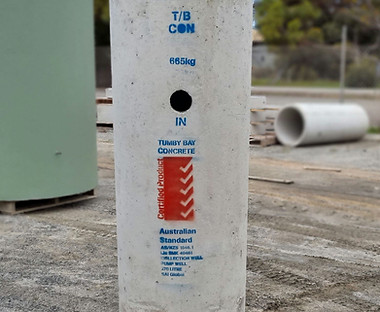

PUMP OUT TANK ~ 270 L
Manufactured to Australian Standards and certified by SAI Global to conform with: AS/NZS 1546.1:2008
Round lid required ~ sold separately
Diameter: 600mm L: 1800mm
Weight: 665kg

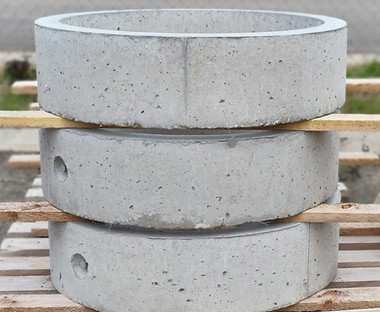

ROUND RISER ~ 200mm
Round Riser Extension
Round lid required ~ Sold separately
Diameter: 600mm H: 200mm

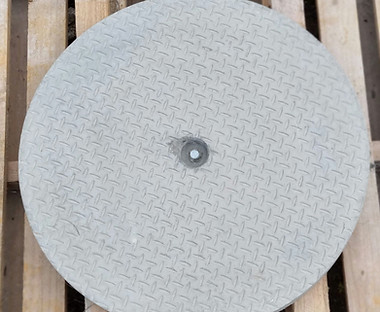

ROUND LID
Round Lid for Pump Out Tank & Round Riser
Diameter: 600mm
HOLDING TANK ~ 3200 L
Diameter: 1660mm L: 2300mm H: 1700mm
Weight: 2500kg
INSPECTION COVERS
Dimensions: 420mm x 420mm x 100mm
